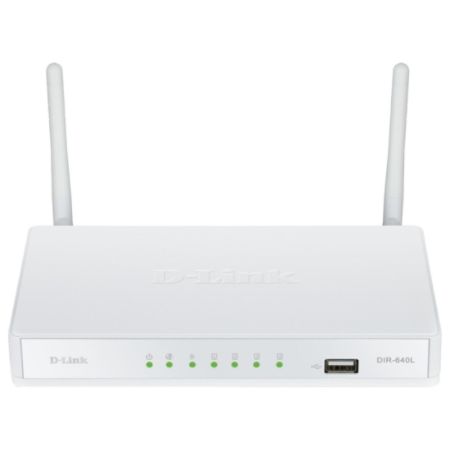

D-Link DIR-640L IEEE 802.11n Wireless Router Item # 727778

 |
D-Link DIR-640L IEEE 802.11n Wireless Router
$ 138 .99 / each $138.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The D-Link DIR-640L Wireless N300 VPN router is an easy to deploy VPN router that combines the functions of a router, a 10/100 switch, wireless N access point, VPN, and firewall into a single device designed specifically for the Small Office/Home Office (SOHO) market, which demands superior performance and security in a compact desktop chassis. With small businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DIR-640L Wireless N VPN router offers high return on investment through robust security features, flexible configuration, and superb network protection for small offices and home networks.

    Back To Top

    Product Details

    Item # 727778
    Manufacturer # QN7397
    Ethernet Technology Fast Ethernet
    Wireless Transmission Speed 300 Mbit/s
    power source AC Adapter
    height 1.1 in
    System Requirements Internet Explorer 6 or later, or another Java-enabled browser
    Certifications & Standards IEEE 802.11b; IEEE 802.11g; IEEE 802.11n; IEEE 802.3; IEEE 802.3u; FCC Class B; CE; UL
    Features Quality of Service (QoS)
    Number of Network (RJ-45) Ports 4
    PoE (RJ-45) Port No
    width 4.4 in
    Security Features Network Address Translation (NAT); Port Forwarding; Port Address Translation (PAT); IPSec/PPTP/L2TP Pass-through; PPTP/L2TP Server/Client; IPSec NAT-Traversal; XAUTH (Extended Authentication) for IPSec Authentication; Encryption Transform: DES, 3DES, AES; Stateful Packet Inspection (SPI)
    security/encryption WPA; WPA2
    depth 7.4 in
    Broadband Transmission Technology Ethernet
    Product Name Wireless N300 VPN SOHO Router
    manufacturer D-Link Systems, Inc
    Management Web based management; DHCP
    VGA No
    weight 9.30 oz
    Powerline No
    brand name D-Link
    Wireless LAN Standard IEEE 802.11n
    USB Yes
    VPN Supported Yes
    UNII Band No
    Input Voltage 12 V DC
    Network (RJ-11) No
    Number of Broadband (RJ-45) Ports 1
    Management Port Yes
    ISM Band Yes
    form factor Desktop
    ISM Minimum Frequency 2.40 GHz
    warranty length 1-year limited
    model name DIR-640L
    Serial Yes
    Network Technology 10/100Base-TX
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Description

      • Overview

        The D-Link DIR-640L Wireless N300 SOHO VPN Router is an easy to deploy VPN router that combines the functions of a router, a 10/100 switch, Wireless N access point, VPN, and firewall into a single device designed specifically for the Small Office/Home Office (SOHO) market, which demands superior performance and security in a compact desktop chassis.  With small businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DIR-640L Wireless N VPN Router offers high return on investment through robust security features, flexible configuration, and superb network protection for small offices and home networks.

      • User Configurable Interface

        The DIR-640L features an intuitive user interface that can easily be configured and monitored via D-Link’s web-based management interface. These configuration options can be managed through Admin or Read/Write administrator rights. With these access management levels, any authorized user can easily configure or access the management interface of the DIR-640L.

      • Enterprise-Class Security

        The DIR-640L can encrypt all wireless transmission using WPA™ or WPA2™ to protect your network. It also protects your network from online intruders and potential attacks with Dual Active Firewall protection using Network Address Translation (NAT) and Stateful Packet Inspection (SPI).

      • Advanced Hardware Features

        The DIR-640L can be connected to a cable or DSL modem to share highspeed Internet access. It also doubles as a 4-port full-duplex 10/100 switch to connect up to four Ethernet-enabled devices, and you can simply add more switches to expand your wired network. This router also functions as a Wireless N access point to connect wireless devices to your network. In addition, you can create a Virtual Private Network (VPN) with the DIR-640L and allow up to 25 off-site or traveling users to securely access your central network through the Internet simultaneously.

        VPN Performance

        For optimal VPN configuration, the DIR-640L has an integrated VPN Server to support almost any required VPN policy. This device has a hardware VPN engine to support and manage up to 25 VPN configurations. The DIR-640L can support IPSec, PPTP, L2TP, and GRE protocols in Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES, 3DES, and AES encryption, IKE/ISAKMP key management, Main/ Aggressive Negotiation modes, and VPN authentication support using the internal 10-user database.

      Features

      Connectivity
      • 802.11n/g/b wireless
      • Four Ethernet LAN ports
      • Ethernet WAN port
      • USB 2.0 port
      • RS-232 COM port

      Multi-Function Security
      • Network Firewall
      • VPN Server
      • Content Manager
      • Network Access Control

      Advanced Firewall Features
      • Network Address Translation (NAT)
      • Stateful Packet Inspection (SPI)

      Embedded VPN Accelerator
      • Up to 25 VPN tunnels
      • Supports IPSec, PPTP, L2TP, GRE tunnels
      • DES, 3DES, AES encryption
      • Automated key management via IKE/ISAKMP
      • Main/Aggressive Negotiation mode

      Enhanced Network Services
      • DHCP Server/Client
      • DNS relay
      • SysLog support and e-mail alerts
      • SNMP management
      • Quality of Service

      Images

      {"images":[{"assetWrapper":"image-gallery","description":"Front View of DIR-640L Wireless N300 SOHO VPN Router","runtimeSrc":{"height":1012,"width":1299,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/a39ab026-9fc8-4062-9a47-a7feccfe5772.jpg.web.jpg"},"caption":"DIR-640L Front View","isAdaCompliant":true,"src":{"height":1012,"width":1299,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/a39ab026-9fc8-4062-9a47-a7feccfe5772.jpg"},"sources":[{"height":748,"width":960,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/a39ab026-9fc8-4062-9a47-a7feccfe5772.jpg.w960.jpg"},{"height":374,"width":480,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/a39ab026-9fc8-4062-9a47-a7feccfe5772.jpg.w480.jpg"},{"height":187,"width":240,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/a39ab026-9fc8-4062-9a47-a7feccfe5772.jpg.w240.jpg"}]},{"assetWrapper":"image-gallery","description":"Angle View of DIR-640L Wireless N300 SOHO VPN Router","runtimeSrc":{"height":1127,"width":1394,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/459d9cb6-087b-42af-b16a-3f353b14781e.jpg.web.jpg"},"caption":"DIR-640L Angle View","isAdaCompliant":true,"src":{"height":1127,"width":1394,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/459d9cb6-087b-42af-b16a-3f353b14781e.jpg"},"sources":[{"height":776,"width":960,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/459d9cb6-087b-42af-b16a-3f353b14781e.jpg.w960.jpg"},{"height":388,"width":480,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/459d9cb6-087b-42af-b16a-3f353b14781e.jpg.w480.jpg"},{"height":194,"width":240,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/459d9cb6-087b-42af-b16a-3f353b14781e.jpg.w240.jpg"}]},{"assetWrapper":"image-gallery","description":"Angle View of DIR-640L Wireless N300 SOHO VPN Router","runtimeSrc":{"height":1088,"width":1358,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/9bc885c2-e6b9-4f5e-bdf3-cf03cf847acc.jpg.web.jpg"},"caption":"DIR-640L Angle View","isAdaCompliant":true,"src":{"height":1088,"width":1358,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/9bc885c2-e6b9-4f5e-bdf3-cf03cf847acc.jpg"},"sources":[{"height":769,"width":960,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/9bc885c2-e6b9-4f5e-bdf3-cf03cf847acc.jpg.w960.jpg"},{"height":385,"width":480,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/9bc885c2-e6b9-4f5e-bdf3-cf03cf847acc.jpg.w480.jpg"},{"height":192,"width":240,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/9bc885c2-e6b9-4f5e-bdf3-cf03cf847acc.jpg.w240.jpg"}]},{"assetWrapper":"image-gallery","description":"Side View of DIR-640L Wireless N300 SOHO VPN Router","runtimeSrc":{"height":761,"width":1022,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/509a1013-df2d-4da8-b619-fe8739b62e7a.jpg.web.jpg"},"caption":"DIR-640L Side View","isAdaCompliant":true,"src":{"height":761,"width":1022,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/509a1013-df2d-4da8-b619-fe8739b62e7a.jpg"},"sources":[{"height":715,"width":960,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/509a1013-df2d-4da8-b619-fe8739b62e7a.jpg.w960.jpg"},{"height":357,"width":480,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/509a1013-df2d-4da8-b619-fe8739b62e7a.jpg.w480.jpg"},{"height":179,"width":240,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/509a1013-df2d-4da8-b619-fe8739b62e7a.jpg.w240.jpg"}]},{"assetWrapper":"image-gallery","description":"Back View of DIR-640L Wireless N300 SOHO VPN Router","runtimeSrc":{"height":868,"width":1430,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/7ae31e8d-c7e0-488c-935b-e5b0da7f0919.jpg.web.jpg"},"caption":"DIR-640L Back View","isAdaCompliant":true,"src":{"height":868,"width":1430,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/7ae31e8d-c7e0-488c-935b-e5b0da7f0919.jpg"},"sources":[{"height":583,"width":960,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/7ae31e8d-c7e0-488c-935b-e5b0da7f0919.jpg.w960.jpg"},{"height":291,"width":480,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/7ae31e8d-c7e0-488c-935b-e5b0da7f0919.jpg.w480.jpg"},{"height":146,"width":240,"src":"/_cp/products/1378313655129/tab-0b39515b-05fd-4038-8f36-e7d78432b70f/7ae31e8d-c7e0-488c-935b-e5b0da7f0919.jpg.w240.jpg"}]}]}

      Specifications

      Technical Specifications

      General

      Standard      s
      • IEEE 802.11b/g/n
      • IEEE 802.3
      • IEEE 802.3u

      Ports
      • Four 10/100 LAN ports
      • 10/100 WAN port
      • USB 2.0 port
      • RS-232 COM port
      • Kensington lock slot

      LEDs
      • Power/Status
      • WAN
      • WLAN
      • LAN 1/2/3/4

      Device Management
      • Internet Explorer 6 or later, or another Java-enabled browser

      Functionality

      Firewall Modes of Operation
      • Layer 3 Mode: NAT Mode
      • Network Address Translation (NAT)
      • Port Forwarding
      • Port Address Translation (PAT)

      VPN Security
      • VPN Tunnels: 25 (IPSec, PPTP, L2TP, GRE)
      • IPSec LAN-to-LAN / Remote User
      • IPSec/PPTP/L2TP Pass-through
      • PPTP/L2TP Server/Client
      • IPSec NAT-Traversal
      • XAUTH (Extended Authentication) for IPSec Authentication
      • Encryption Transform: DES, 3DES, AES

      Firewall Security
      • Stateful Packet Inspection (SPI)
      • Network Address Translation (NAT)
      • Internal User Database (10 records)

      Network Service
      • Static IP Address
      • DHCP Client for WAN Interface
      • Internal DHCP Server
      • Static Routes
      • DNS Resolving of Remote Gateway
      • PPPoE for xDSL
      • Russian PPPoE/PPTP (Dual Access)
      • Quality of Service
      • Dynamic DNS

      Physical & Environmental

      Power
      • 12 V DC, 1 A

      Operating Temperature
      • 0 to 55 °C (32 to 131 °F)

      Operating Humidity
      • 95% maximum (non-condensing)

      Certifications
      • FCC Class B
      • CE
      • UL
      • Wi-Fi Certified

      Dimensions
      • 4.4 x 7.4 x 1.1 inches (112 x 188 x 28 mm)

      Weight
      • 9.3 ounces (263.5 grams)

      Ordering Information
      • DIR-640L     Wireless N300 SOHO VPN Router

      Warranty Information
      • 1 Year Limited
